System door and window integrated machine
Request A Quote
Product Description

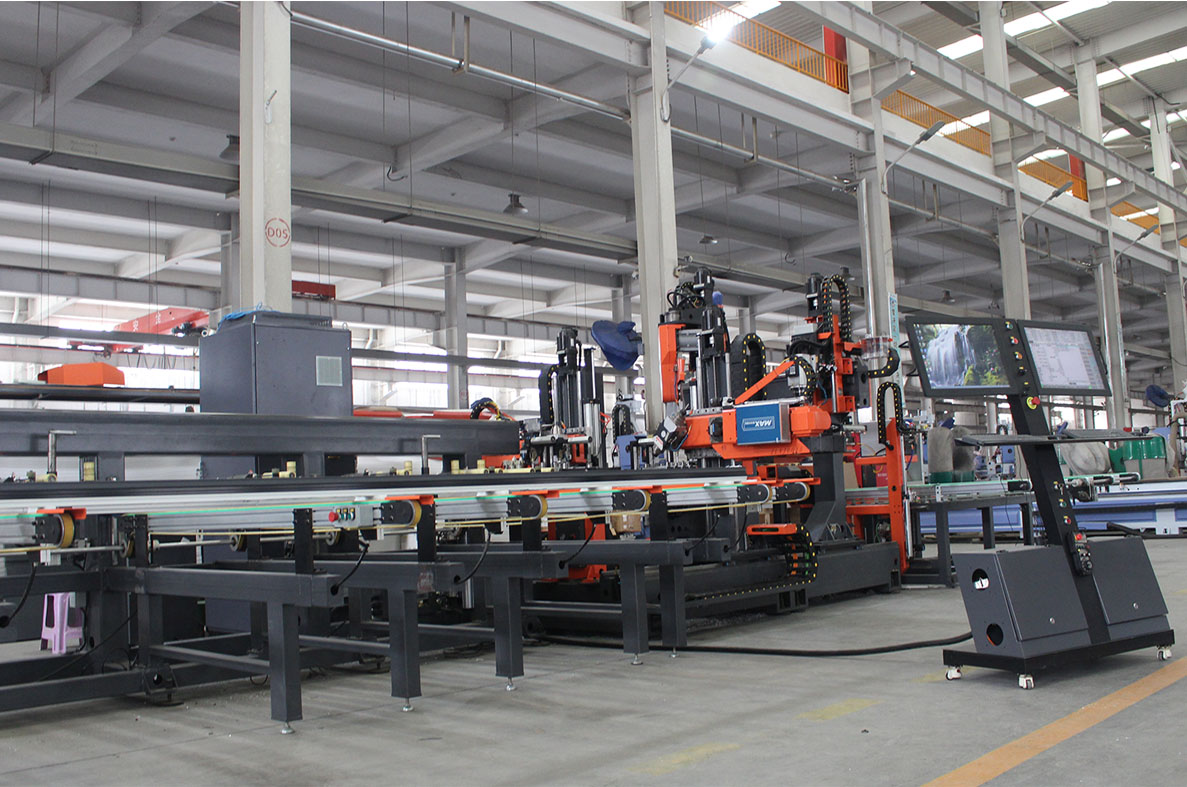

CNC machine for processing system door and window. 16m×5m working area, Crawler conveyor. Contains auto loading area, processing area and unloading area. Taiwan LNC control system, servo motor, 2kw and 30W laser cutting, Two double-head electric spindles, one ATC air cooling spindle., Automatic labeling, Self-developed Cam software. Fully automatic processing, drilling, milling and cutting, High precison and high speed. Saving labor and space.
Video
Parameter
Accessories and Advantage

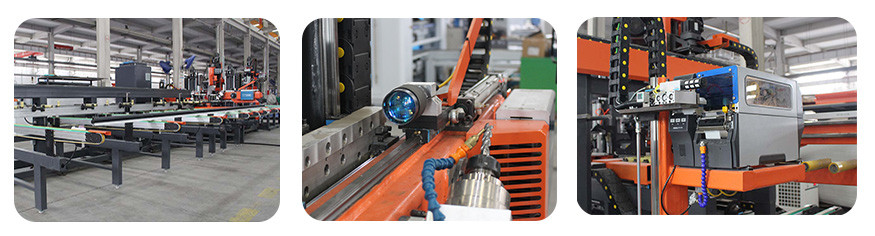

Two double-head electric spindles, one ATC air cooling spindle,360 rotation saw blade.
2kw laser cutting and 30W laser mark.with the fixture, any angle can be processed at the same time.

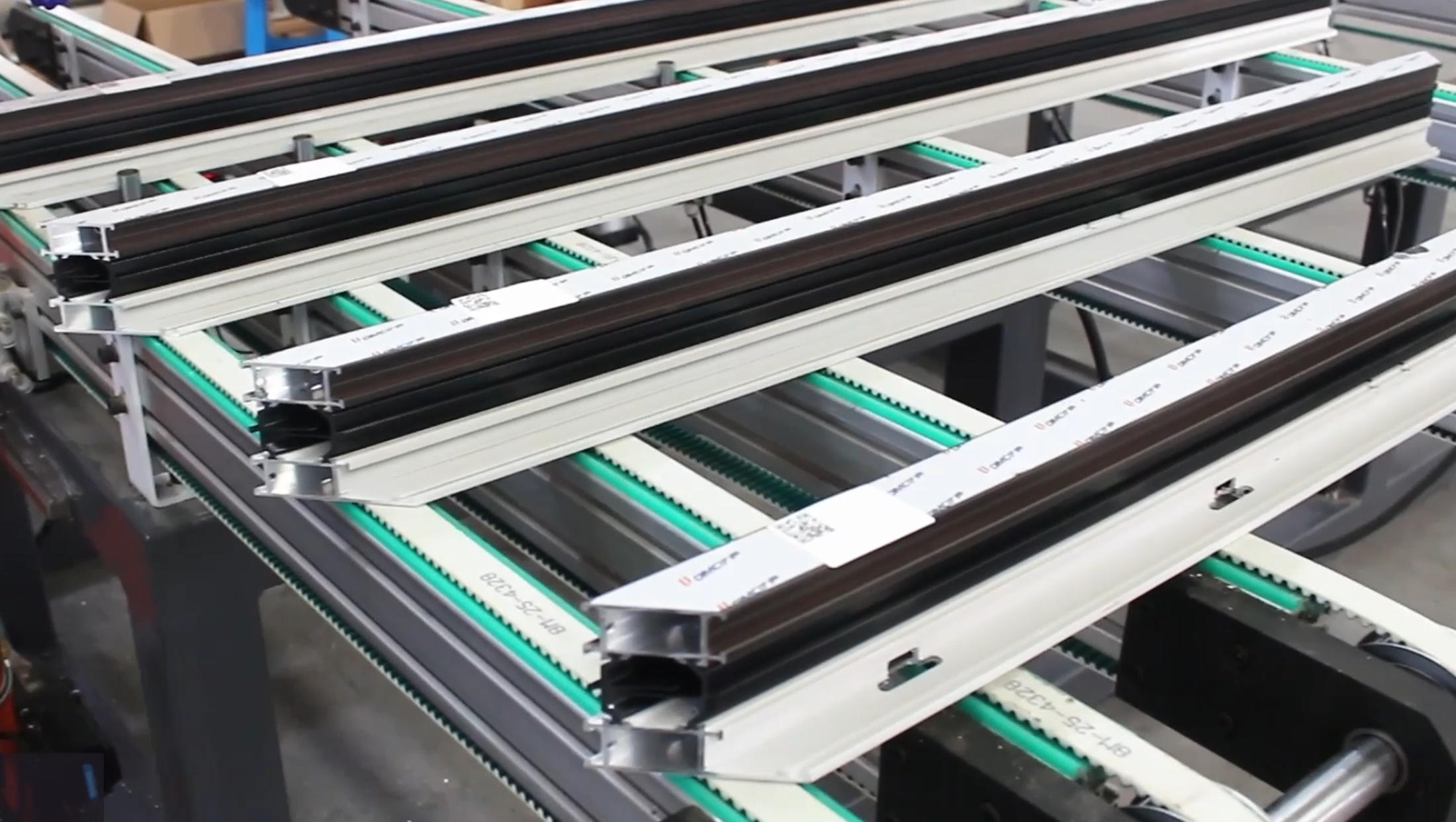

Auto loading and unloading, dust removal conveyor belt.
Automatic labeling
Quick customization control system
Application

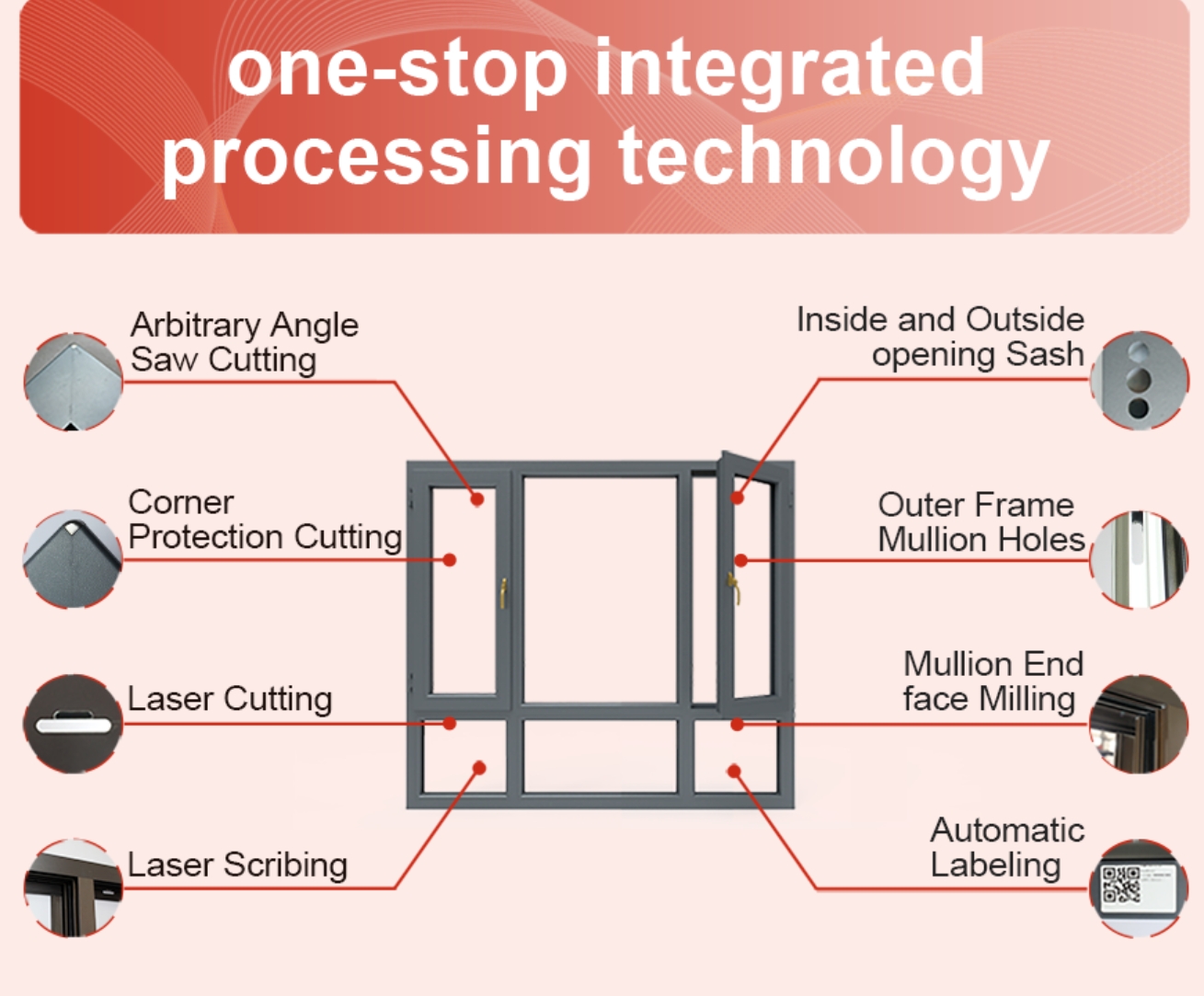

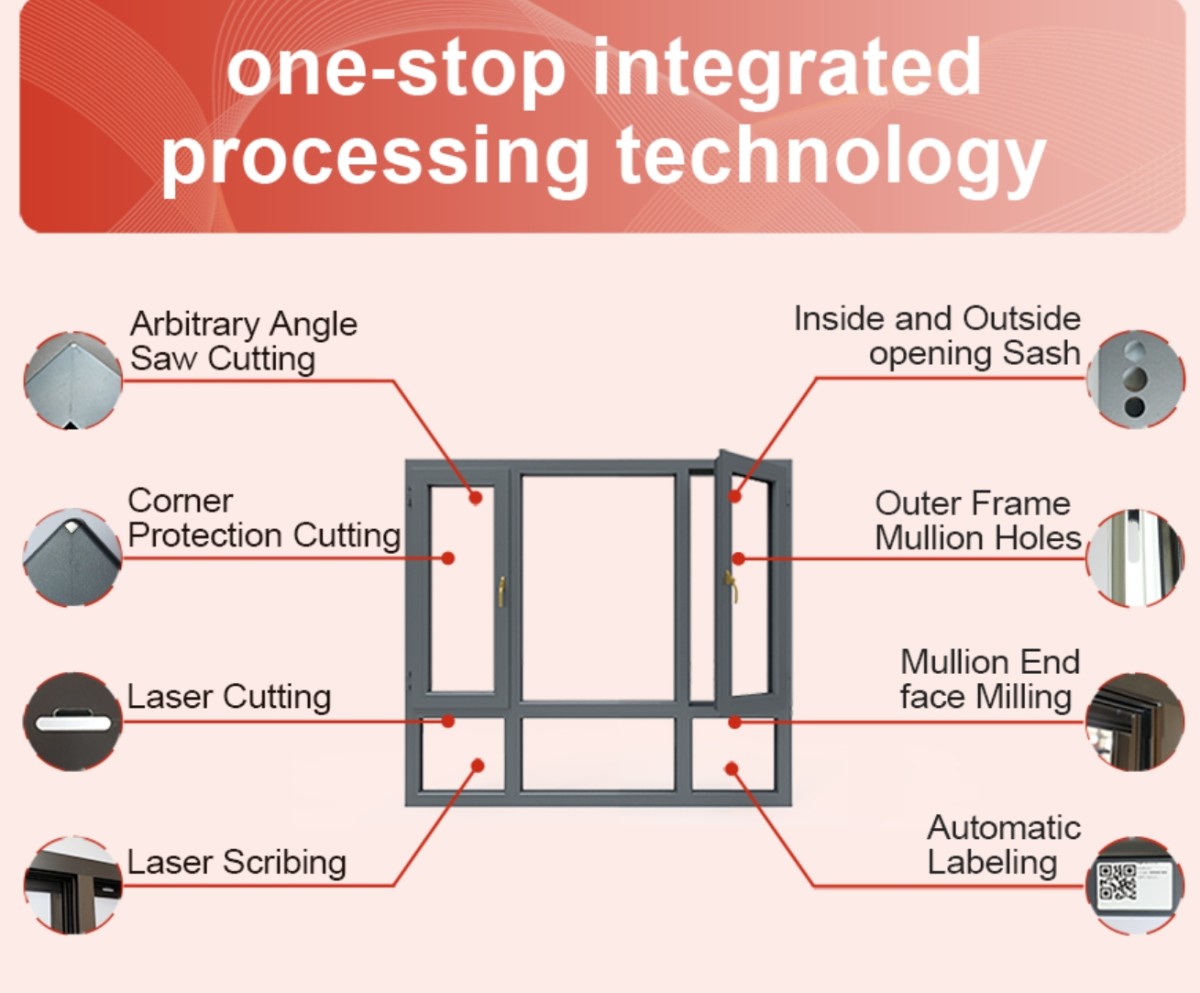

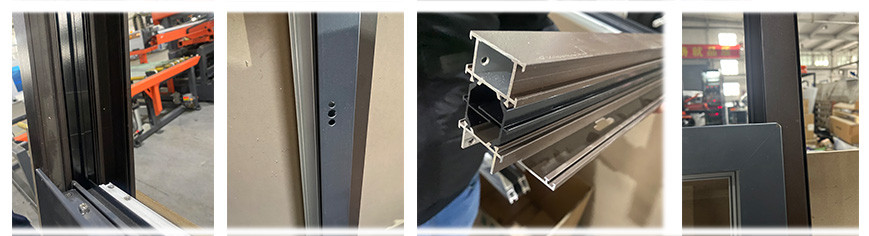

This cnc machine can process system door and window, Profile processing, including drilling, milling, cutting and end processing. Fully automatic processing, improve production efficiency and save labor costs.
Related Products
Intelligent cnc router for the door coverWood door cover making cnc nesting machine.
It can be applied to door cover processing and cabinet body and cabinet door processing.
The 9kw tool change spindle is equipped with 12 tool magazines to meet the needs of door pockets and engraving tools.
The three axes of X, Y and Z all use 30 guide rails.
The bed, column and beam square tube are all designed according to heavy duty.
The feeding support casters are added at the front end of the machine, and the former sheet metal support wheels are changed to silent and smooth strips.
Filter boad centerThe ZLH1515LBX five-axis filter plate machining center is a patented product independently developed by our company. This structure is the world's first, subverting the entire industry's cognition of filter plate processing, and represents the most advanced industry level in the world today. According to the technical characteristics of filter plate processing, this product has independently developed the motor, spindle and operating system for the machine, so that the processed filter plate can be directly connected to the equipment for installation, which truly realizes the intelligent filter plate production mode.
